  Home >> Mobile Antenna >> NAGOYA Antenna >> wifi antenna outdoor booster rubber antenna GSM wireless connector 4g 5g 868/915MHZ 3dbi 5dbi SMA Antenna RF1.13 Pigtail

wifi antenna outdoor booster rubber antenna GSM wireless connector 4g 5g 868/915MHZ 3dbi 5dbi SMA Antenna RF1.13 Pigtail [Comments(0)|Leave your Comment]
Brand:NAGOYA Antenna
Item#:21082413511095
Score:18  (Score change Discount Voucher)
Weight:.15 kg.
List Price:$5.50
Price:$3.00
You Save:$2.50
Qty:

Prev:RE 02 Masse der mobile Antenne UHF F 10 1300 MHz for mobile Auto radio antenne

Next:Hot Sell Short Srh-805S Dual Band Chip Handheld Radio Antenna

detail

Related

Comment

Payment

Shipping

olor:
silvery
Material:
brass,Nickel-plated
Media Available:
www.rf-connector-china.com
Brand Name:
Micro RF Coaxial Connectors
Features:
Frequency up to DC~11GHz
Pin or Socket:
Pin
Number of Positions:
1
Mounting Type:
flange
Connector Usage:
Micro RF Coaxial Connector
Voltage - Rated:
1500V
Shell Material:
brass,Nickel-plated
Voltage Rating:
1500V
Impedance:
50Ohm
Frequency - Max:
11GHz
Housing Finish:
brass,Nickel-plated
Voltage:
1500V
Approved Countries:
China


















Packaging & Delivery
Packaging Details
PE bag packaging
Port
shanghai shenzhen ningbo
Picture Example:
Best Selling

RF cable assembly N Male to 3.5 male for CXN3507 Cable with Armor Length 1000mm Frequency up to 18GHz

$61.94 - $66.58 / Piece

1 Piece

RF Fixed Attenuators SMA Male Conn. Termination 10Watts Fixed Attenuator

$7.71 / Piece

1 Piece

N male to Male For 3507 Semi-Flex/Rigid Coaxial Cable Assembly

$58.84 - $65.04 / Piece

1 Piece

RF Termination SMA male Dummy Load Stainless Steel 1W

$5.34 - $7.62 / Piece

1 Piece

SMA female to female four-hole flange DC-6GHZ SMA-KFKM RF connector

$1.37 - $1.82 / Piece

1 Piece

RF Connector Stainless Steel SMA Male Head 4 Hole Flange Fixed DC~18GHz SMA-JFD42G

$0.61 - $0.91 / Piece

1 Piece

Product Paramenters
Specification


N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.

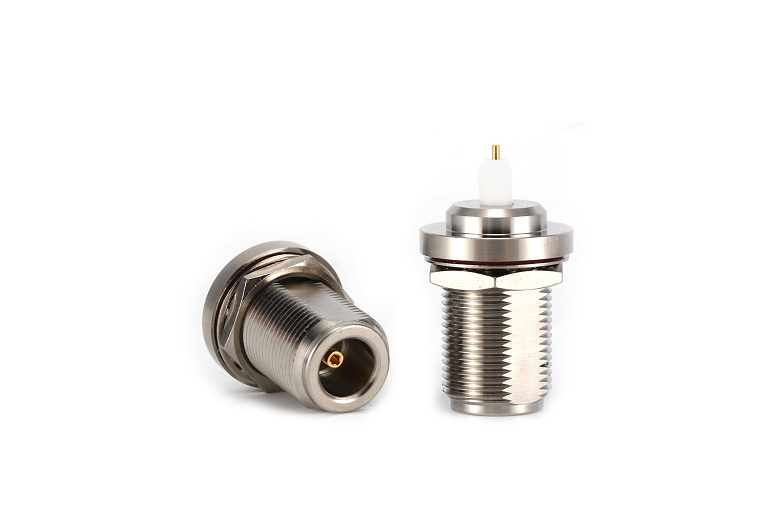

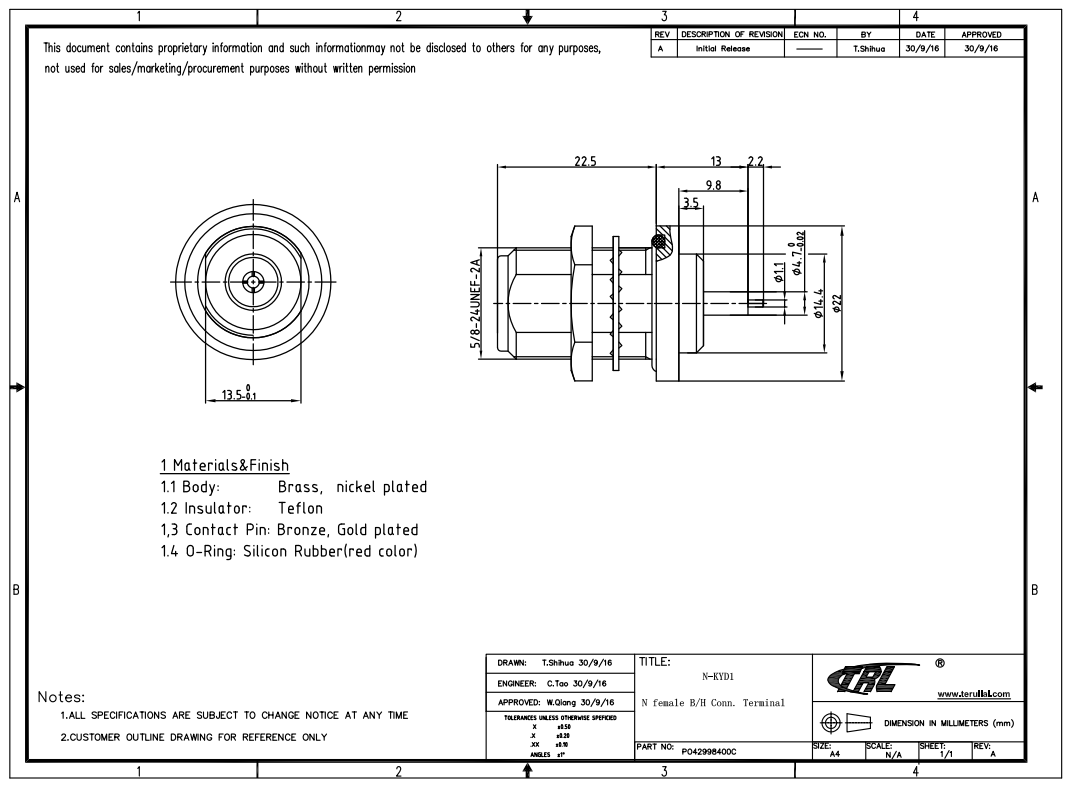

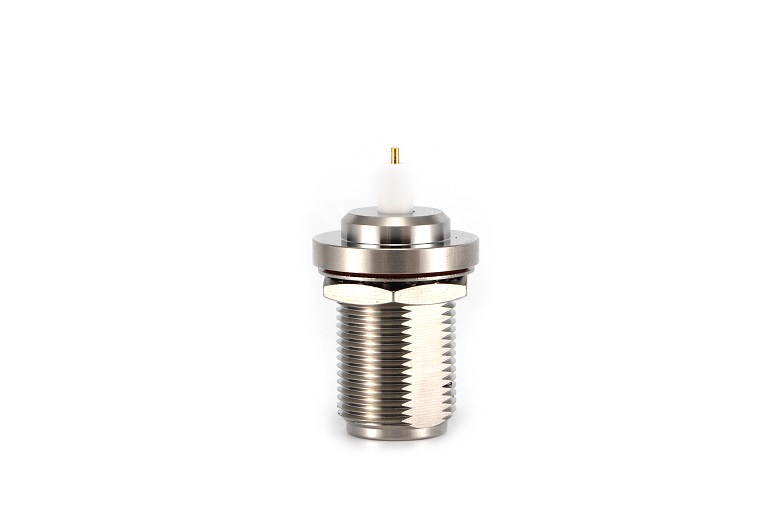

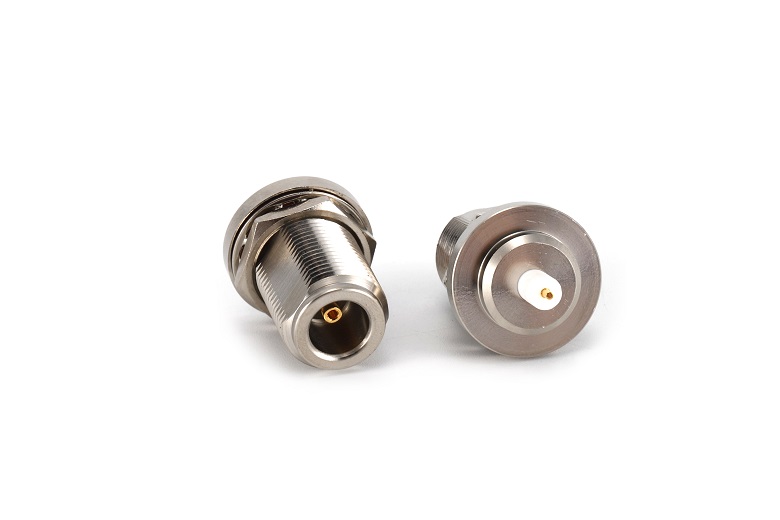

Series N female bulkhead RF Connector Terminal

Teruilai P/N: N-KYD1

RoHS Certificate: Compliant
Frequency range
DC-11GHZ
Durability (matings)
≧500
Dieletric withstanding voltage
1500V
Temperature range
-45℃ to +125℃
Characteristic impedance
50Ω
Connector parts
Material
Plating
Insulation Resistance
≧5000MΩ
Body
Brass
Nickel-plated
.Center conductor
≦1.0mΩ
Pin contacts
Bronze
Gold plated
.Outer conductor
≦0.2mΩ
Insulators
Teflon
VSWR
≦1.2
O-ring
Silicon rubber
Contact Resistance
