ABBREE AR-889G GPS SOS Walkie Talkie 10W 999CH Duplex Repeater Night mode Dual Band VHF UHF Hunting Ham CB Radio HF Transceiver
Specification:
1.Frequency: Dual Band VHF 134-174MHz/UHF 400-520MHz
2.Channels:999
3.Output power: High/Middle/Low Power(10W/5W/1W)
4.Antenna: Loaded antenna
5.Antenna impendence:50Ω
6.Current: Standby 80mA,Talking 220mA
7.Battery capacity:3000mAh
8.Dimensions:133.5*57.5*40mm
9.Power supply voltage:7.4V DC

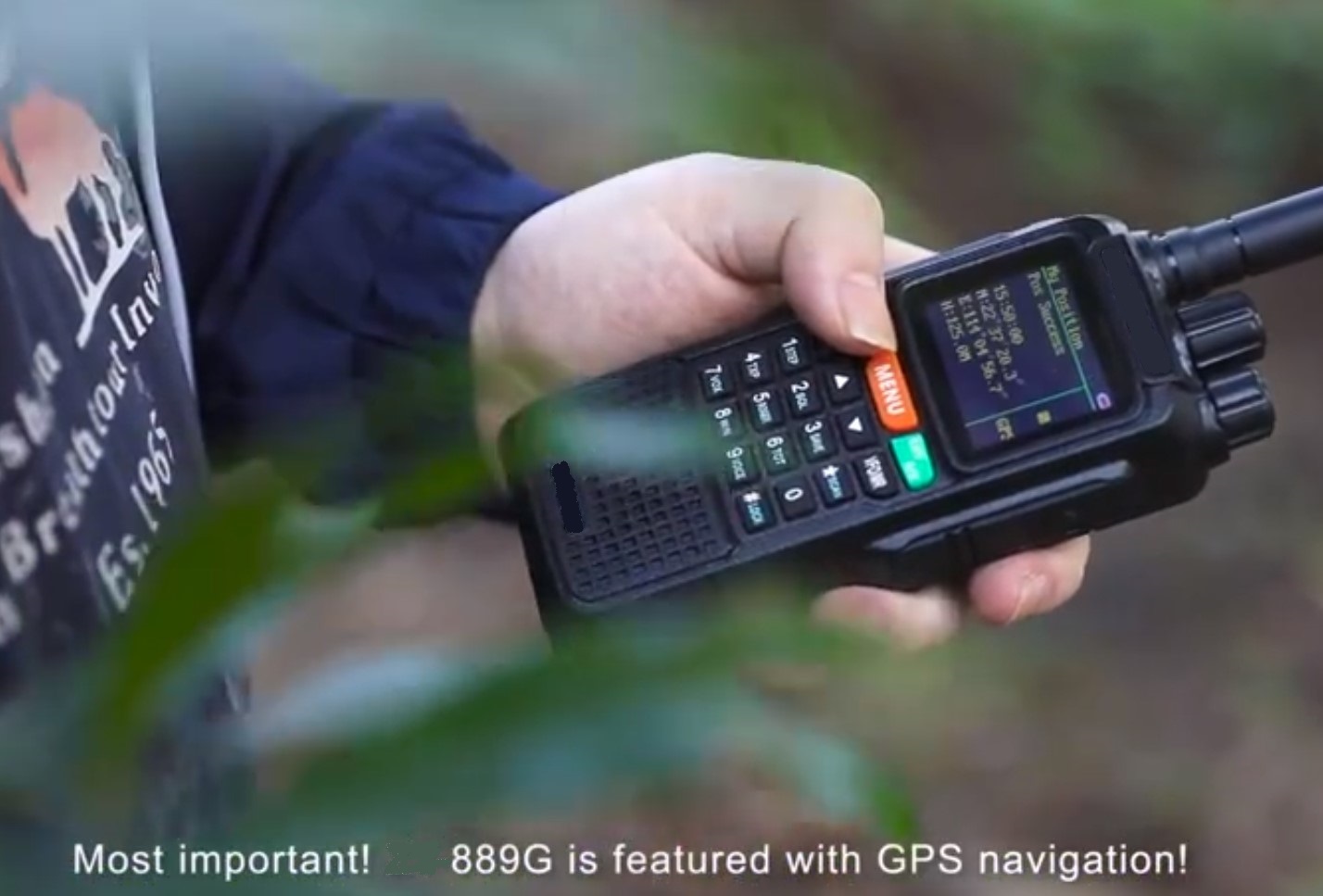

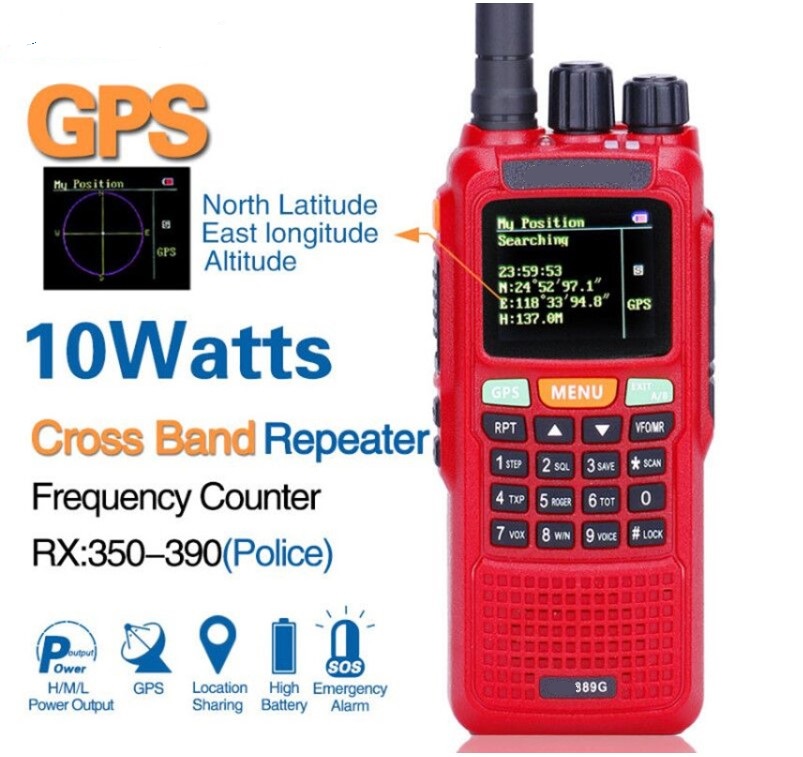

10.GPS :BUILT-IN GPS ,HANDHELD RADIO GPS FUNICATION: Press GPS to enter the GPS state ,place the walkie talkie in an open space or receive a better location for a better signal for GPS positioning,usually about 30 seconds can do work . Many people go out to play,work etc ,the handheld radio can by GPS location, GPS location sent to the companion by Handheld Radio. GPS the precision of civilian areas open about 10-20 meters(Average error 10-20M).
Function:
1.GPS function(Fix position; Distance measurement; Position sharing)
2.Night Mode
3.Backlight mode
4.Duplex different / same band transfer function
5.Duplex working mode (A zone transmit, B zone receive)
6.Dual receive
AB zone duplex working (in the same or different frequency, AB zone all can receive contemporary)
7. Super colorful 1.77inch LCD display
8.Dual display (Large screen dual band display, two completely operation system)
9.Offset frequency setting and frequency direction setting
10.Duplex repeater UHF to VHF or VHF to UHF
11.999 memory channel
12.Output power: VHF: 10W, 5W,L: 1W; UHF : H: 8W,5W,L:1W
13.CTSS/DCS, CTSS/DCS scan function
14.VOX function
15.Definition function of Multi-side key
16.Caller ID display
17.Main caller ID display
18.DTMF
19.All Calls, Group Calls and Selective Calls
20.SOS function
21.Priority Scan Function
22.Remote emergency alarm
23.Wide/Narrow bandwidth Selection(12.5KHZ/25KHZ)
24.Operating voice prompts in English and Chinese
25.Display in English and Chinese
26.Single Tone Pulse Frequency: 2100Hz/1750Hz/1000Hz/1450Hz(signaling for activating repeater)
27.Reverse Frequency
28.Stopwatch function
Intergration | |
Frequency Range | suitable for different countries or areas 136-174MHz & 400-470MHz 136-174MHz & 400-480MHz
136-174MHz & 420-520MHz 144-146MHz & 430-440MHz
144-148MHz & 420-520MHz | |
| |
| |
| |
Step | 5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz | |
Channel Number | 999 | |
Work Mode | F2D/F3E | |
Operating Temperature | -20℃～+40℃ | |
Voltage | 7.4VDC | |
Antenna Impedance | 50Ω | |
Weight | 490 g | |
Size | 133.5 x 57.5 x 40 (mm) | |
Receiver | |
| Wide Band | Narrow Band | |
Adjacent Channel Selectivity | ≤70dB | ≤60dB | |
Inter Modulation | ≤65dB | ≤60dB | |
Spurious Response | ≤70dB | ≤70dB | |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) | |
Signal to Noise Ratio | ≥45dB | ≥40dB | |
Audio Distortion | ≤5% | |
Audio Power | ≤500mW | |
Sensitivity | UHF/VHF：0.25μV（12dB SINAD） | |
Transmitter | |
| Wide | Narrow | |
Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
Selectivity | | | |
Type of Modulation | 16K F3E | 11K F3E | |
Spurious | ≥60dB | ≥60dB | |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) | |
Max Frequency Deviation | ±5KHz | ±2.5KHz | |
Frequency Stability | ±2.5PPM | |
Audio Distortion | ≤5% | |
Output Power | VHF: 10W, 5W,L: 1W; UHF : H: 8W,5W,L:1W | |
| | | | | | | |
Packing includes:
1*ABBREE AR-889G Radio
1*High Gain Antenna
1*Li-ion Battery Pack
1* Smart Charger
1*Belt Clip
1*Hand Strap
1*User’s Manual
