Baofeng Walkie Talkie DM-1701 new dual band 1.77 inch 136-174/400-480Mhz digital radio

[Comments(0)|Leave your Comment]

Item#:21082413511095

Score:18 (Score change Discount Voucher)

Weight:1 kg.

List Price:~~$55.00~~

Price:$52.80

You Save:$2.20

Qty:

Prev:00:08 00:18 BaoFeng UV-S9 Plus 8-Watt 2200mAh Larger Battery with USB Charger Cable Rechargeable long rang VHF UHF radio

Next:New Product Walkie Talkie Baofeng UV-8D uhf single band two way radio

detail

Comment

Payment

Shipping

Baofeng Walkie Talkie DM-1701 new dual band 1.77 inch 136-174/400-480Mhz digital radio

Main Features:

1.Wide band intercom
Supports UV dual-band, frequency range UHF400.000- 480.000MHz/VHF136.000-174.000MHz
2.DMO True2-Slot dual slots
3.Digital-analog compatible, smooth over
4.Digital signalling function
5.SMS function
6.High fidelity quality
7.Manual Programmable
8.High and low power selection
9.CTCSS/CDCSS and tail cancellation
10.Alarm function
11.Digital mode supports the use of relays
Side key custom settings, do not change the user's operating habits on the machine

General Specifications

Model: BAOFENG DM-1701
Frequency Range: VHF136~174Mhz, UHF400~470MHz For use in ham band only
Storage Channel:Up to 3000 Channels
Stepped Frequency:2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25KHz
Operating Voltage:DC7.4V
Frequency Stability:±1.0ppm
Operating Temperature:-20 ~ +50
Operating Mode:Simplex or Repeater
Antenna Impedance:50Ω
Battery Capacity:2000mAh
Dimensions:133 x 62 x36mm (Antenna not included)

Transmitter:

Output Power:5W / 1W
Modulation:(Wide / Narrow) Analog: 16KF3E / 11KF3E / 141KF3E, Digital: DMR Tier I & II, 4FSK: 7K60FXD / 7K60FXE, Protocol: ETSI-TS102 361-1,-2,-3, Vocoder: AMBE+2 TM
Max Frequency Deviation(Wide / Narrow):≤5KHz / ≤2.5KHz
FSK Allowable Error Rate:≤3%
Spurious Power:≤7.5W
Adjacent Channel Power:≤-65dB ≤-60dB
Signal to Noise Ratio:-45dB -40dB
CTCSS / DCS Deviation:0.7 ±0.1KHz/0.4±0.1KHz
Modulation Sensitivity:8-12mv
Transmitting Current:≤1.6A

Receiver

Analog Sensitivity:-122dBm (12dB SINAD )
Digital Sensitivity:-120dBm (BER≤5%)
Audio Power:1W
Audio Distortion:<10%
Intermodulation: ≥62dB / ≥58dB
Adjacent Channel Selectivity (Wide / Narrow):≥65dB / ≥60dB
Receiving Current:≤380mA

General Specifications
Model:	BAOFENG DM-1701
Frequency Range:	VHF136~174Mhz UHF400~470MHz For use in ham band only
Storage Channel:	Up to 3000 Channels
Stepped Frequency:	2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25KHz
Operating Voltage:	DC7.4V
Frequency Stability:	±1.0ppm
Operating Temperature:	-20 ~ +50
Operating Mode:	Simplex or Repeater
Antenna Impedance:	50Ω
Battery Capacity:	2000mAh
Dimensions:	133 x 62 x36mm (Antenna not included)
Transmitter:
Output Power:		5W / 1W
Modulation: (Wide / Narrow)		Analog: 16KF3E / 11KF3E / 141KF3E Digital: DMR Tier I & II 4FSK: 7K60FXD / 7K60FXE Protocol: ETSI-TS102 361-1,-2,-3 Vocoder: AMBE+2 TM
Max Frequency Deviation: (Wide / Narrow)		≤5KHz / ≤2.5KHz
FSK Allowable Error Rate:		≤3%
Spurious Power:		≤7.5W
Adjacent Channel Power:		≤-65dB ≤-60dB
Signal to Noise Ratio:		-45dB -40dB
CTCSS / DCS Deviation:		0.7 ±0.1KHz/ 0.4±0.1KHz
Modulation Sensitivity:		8-12mv
Transmitting Current:		≤1.6A
Receiver
Analog Sensitivity		-122dBm (12dB SINAD )
Digital Sensitivity		-120dBm (BER≤5%)
Audio Power		1W
Audio Distortion		<10%
Intermodulation		≥62dB / ≥58dB
Adjacent Channel Selectivity (Wide / Narrow)		≥65dB / ≥60dB
Receiving Current		≤380mA

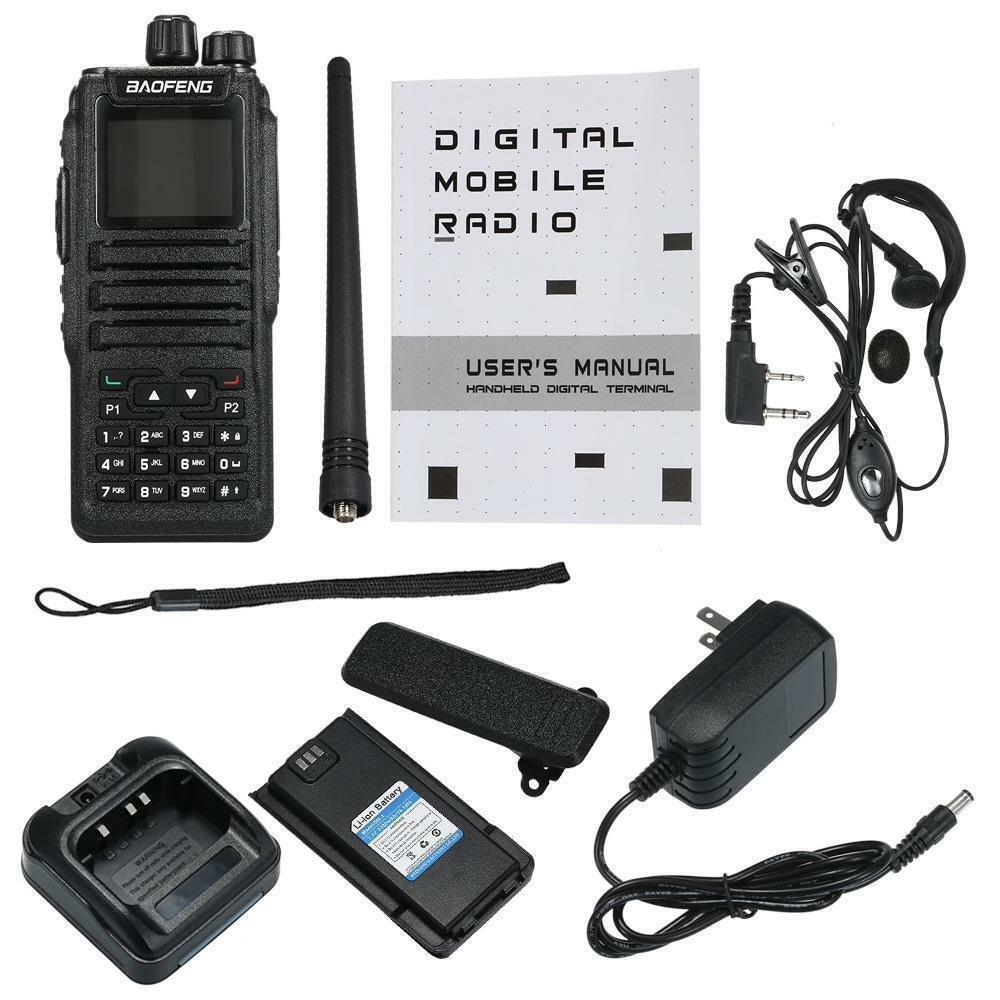

Package includes:

1 × DM-1701 Radio
1 × 2200mAh Li-ion Battery Pack
1 × Desktop Charger
1 x AC Adapter(100-240V)
1 × Antenna
1 × Hand Strap
1 × Belt Clip
1 × ear hock Earpiece
1× User Manual in English
